Escape ladder, vertical, aluminum, single-section,entry height 6.44 m
Aluminum emergency ladder 6.44 m
Vertical ladders are an ideal solution in terms of climbing heights, ensuring safe and constant access to buildings and structures, as well as machinery and equipment.
Vertical ladders are used, for example:
entering buildings, machines and devices for inspection and / or maintenance purposes,
escape route from buildings.
Ladders permanently attached to buildings and structures
Scope of application: maintenance and cleaning works on the above-mentioned buildings.
Fire protection - Escape ladders
Scope of application: escape ladders are elements of a building / structure constituting an escape route in an emergency. Basically, emergency escape ladders should be self-evacuating - when planning, it is recommended to consult the fire rescue services.
Safety of machinery - Permanent access to machinery and equipment
Scope of application: Access to stationary and mobile machines and devices.
Planning and use:
When planning, it is recommended to consult the fire rescue service. Entry / exit rails are required if there is a risk of falling from a height of more than 1 m.

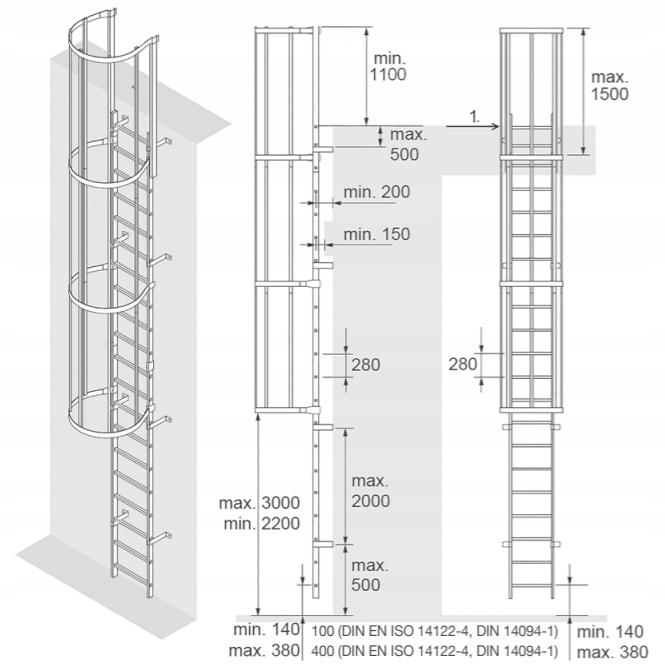

The following guidelines must be followed:
From a height of more than 3 m, protective bars are required to protect against falling.
From a height of more than 10 m, multi-line structures should be used (pulls shifted relative to each other), the maximum length of the line must not exceed 6 m.
In the transition from one line to the other, the elements of the lower sequence may be longer.
If the gap at the exit is greater than 75 mm, it should be reduced by installing an additional exit step.
The maximum distance between the securing bars is 800 mm.
The minimum distance between the ladder and the wall is 150 mm.
The maximum distance between the resting decks is 8,000 - 10,000 mm.
The maximum distance between the anchors is 2000 mm.
Technical specifications:
Vertical entry height: 6.44 m
Ladder length in total: 7.54 m
Material: aluminum
Weight: 44.00 kg
Transport length: 3.64 m
The vertical ladders are designed as a modular structure. The modular system allows for independent, comprehensive and quick assembly of ladders to devices and buildings, saving up to 30% of the time needed for assembly, compared to the traditional solutions used. A wide range of accessories covers the most varied requirements resulting from the conditions of the installation site.
